Sunlift X

Looking this good is no work at all.

Innovation
Sunstream has a rich heritage of innovation and it continues to drive us today more than ever. We’re boaters too and we believed boating could be more fun and less hassle. The Sunlift X is the culmination of meticulous engineering, unparalleled manufacturing and technological advancement. Well designed to lift boats and drop jaws.
Custom Boat Lift
The SunLift X is the only hydraulic lift that has adjustable width bunks to get the ideal boat fit. The boat height over water can be set with the adjustable lifting range. The frame can also be shifted laterally to minimize the distance of the boat to the dock for safest boarding.
Premium Hydraulics
The hydraulic system is the heart of a hydraulic lift and is key for reliability and performance. The SunLift X does not compromise with superior durability with all stainless steel cylinders with SoftStop™, a patented shaft boot, double braid stainless hoses, and stainless fittings. The SunLift X has the best performance with the premium pressure balance pump (versus a basic fixed gear pump) that has up to 20% greater efficiency, higher speed, quieter sound, and does not lose lifting capacity over time. The American built blue anodized power unit has premium German valves and a unique pressure relief at the bottom prevents hydraulic lock. The system uses a non-oil, water soluble SunFluid, which is far more durable against water intrusion versus oil.

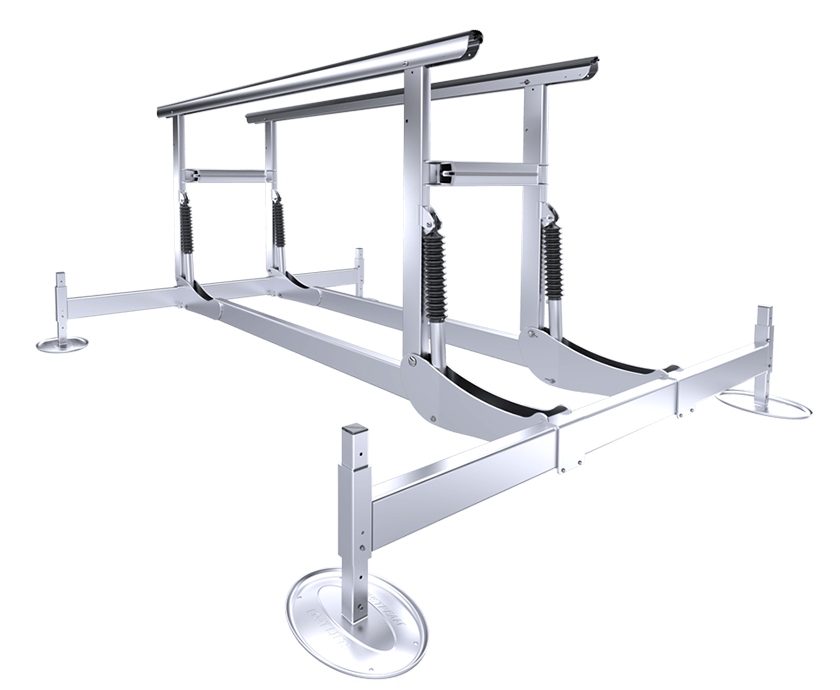

Modern Frame
The SunLift X modern frame has a beauty that is worthy of displaying your boat. The frame has superior stiffness with the cylinders aligned with frame, fewer bolts, and a setbolt to remove movement in the leg socket. The Sunstream SunLift X has the best range of specifications on the market, with the highest lifting range, shallowest water depth, fastest speed, and capacities to 30,000lbs. Optional LegJacks can give an additional 3ft of range to lakes with seasonal fluctuation.
Technology
Introducing the Sunstream Bluetooth® transmitter and smartphone app. Now it’s even more convenient to control your Sunstream boat lift with the remote that’s always with you. The two-way communication transfers data to and from a smartphone and the Sunstream lift, enabling the app to display the current voltage, charging status, battery health, performance data and diagnostic data, as well as provide basic Up and Down functionality. Another industry first, from the leaders in boat lift innovation.

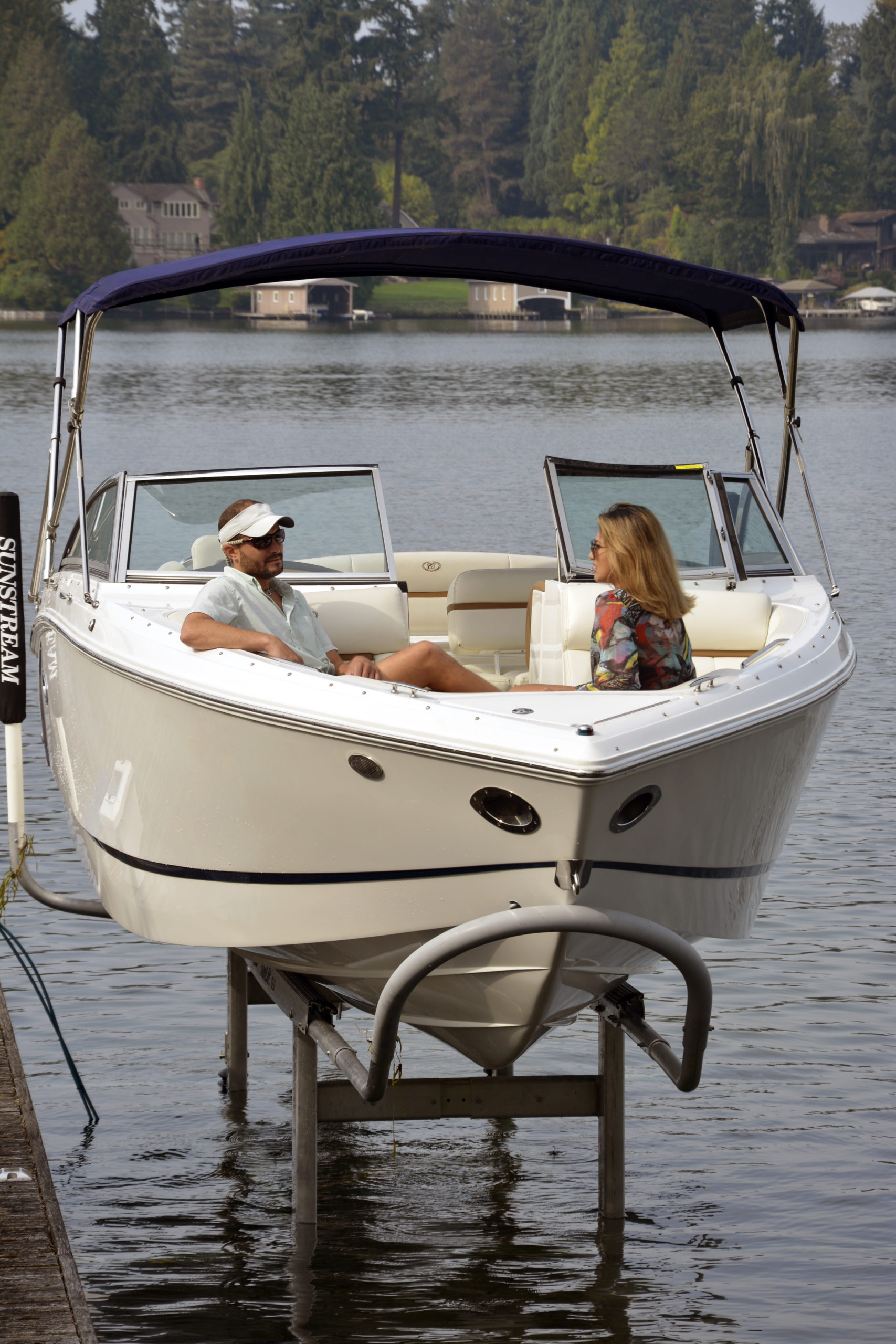

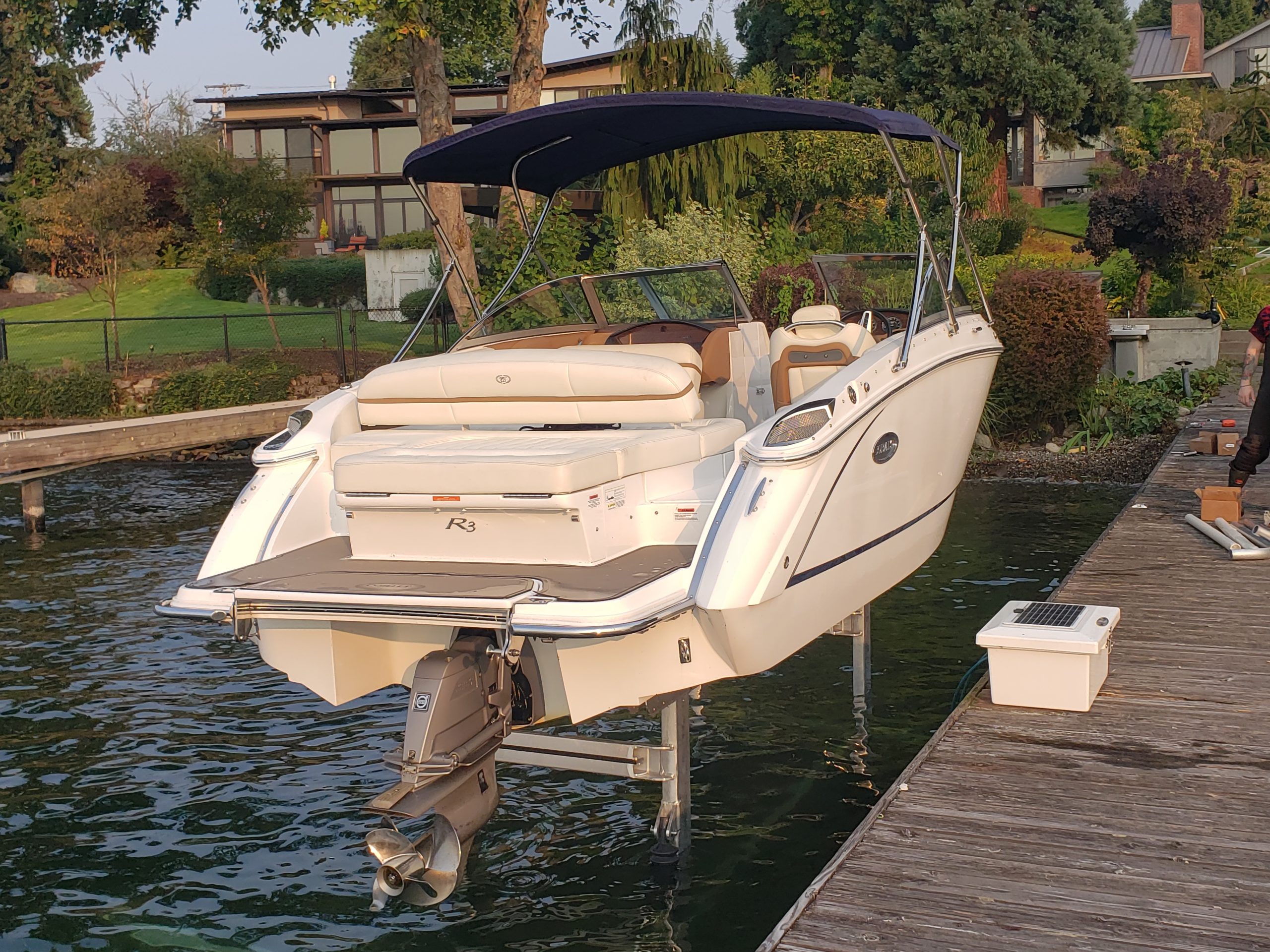

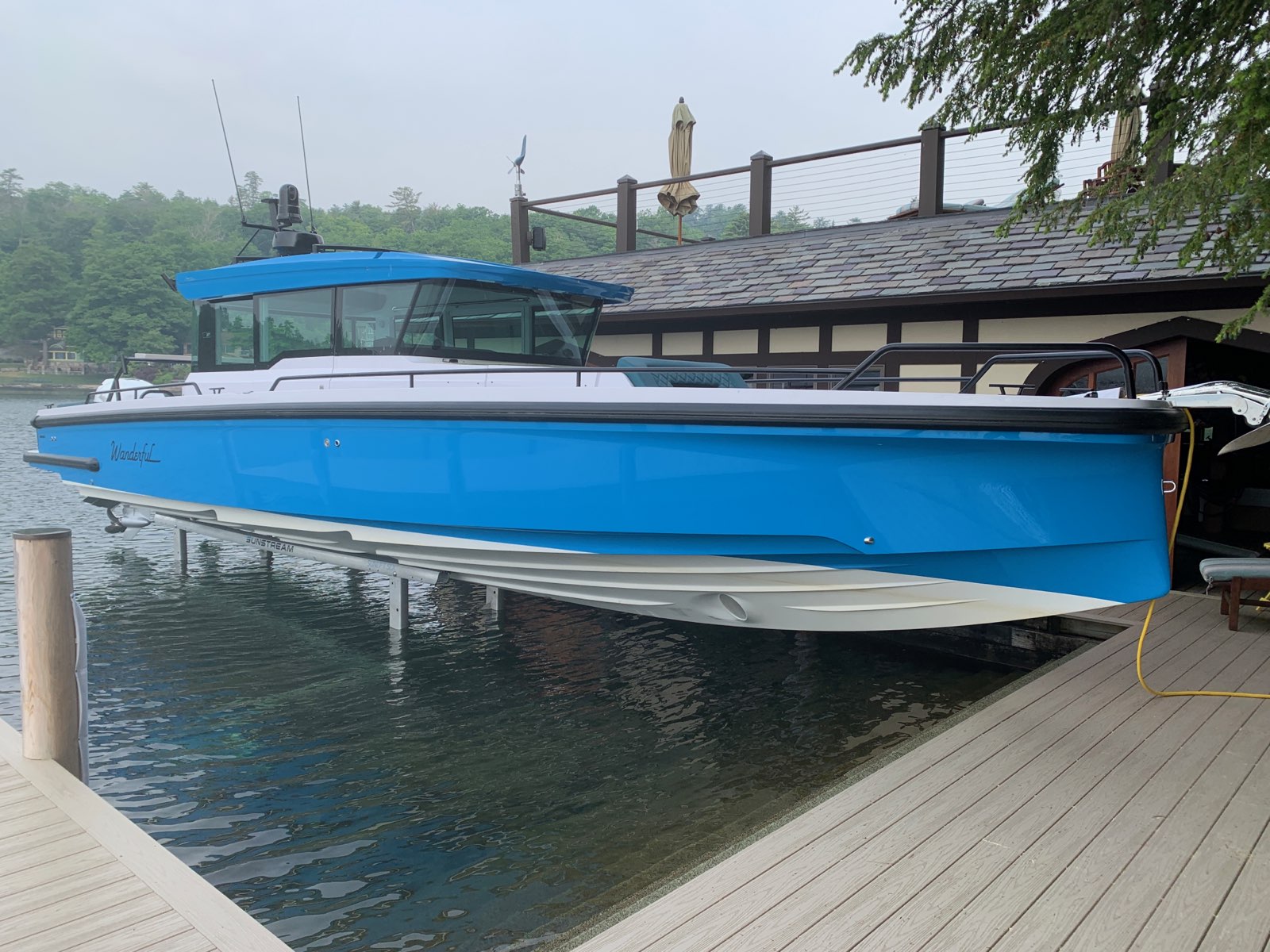

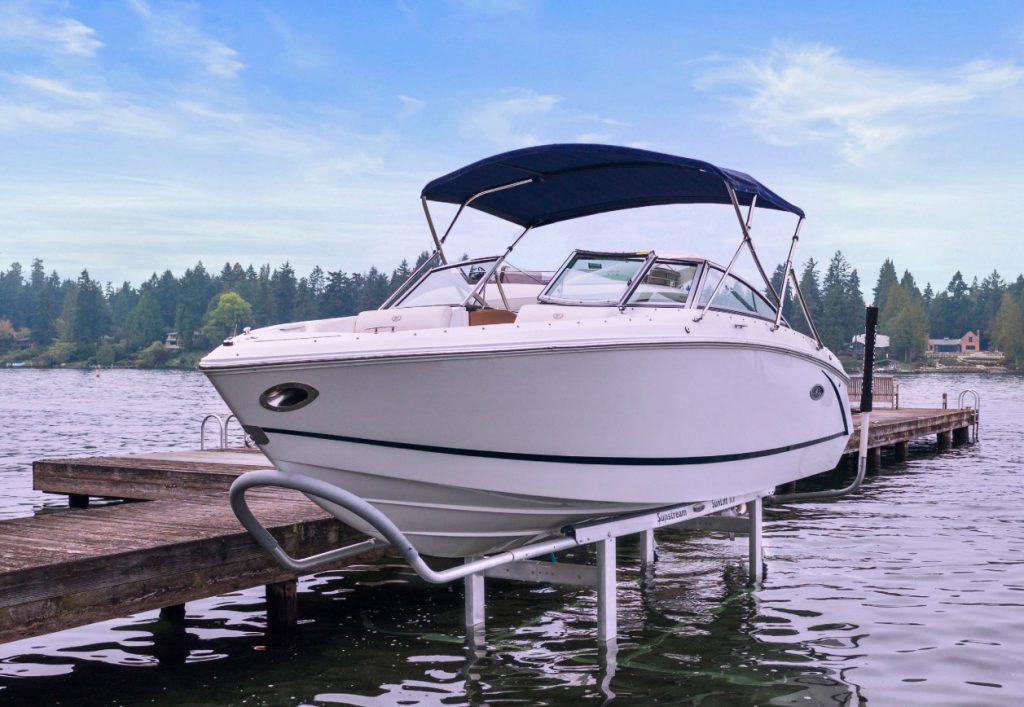

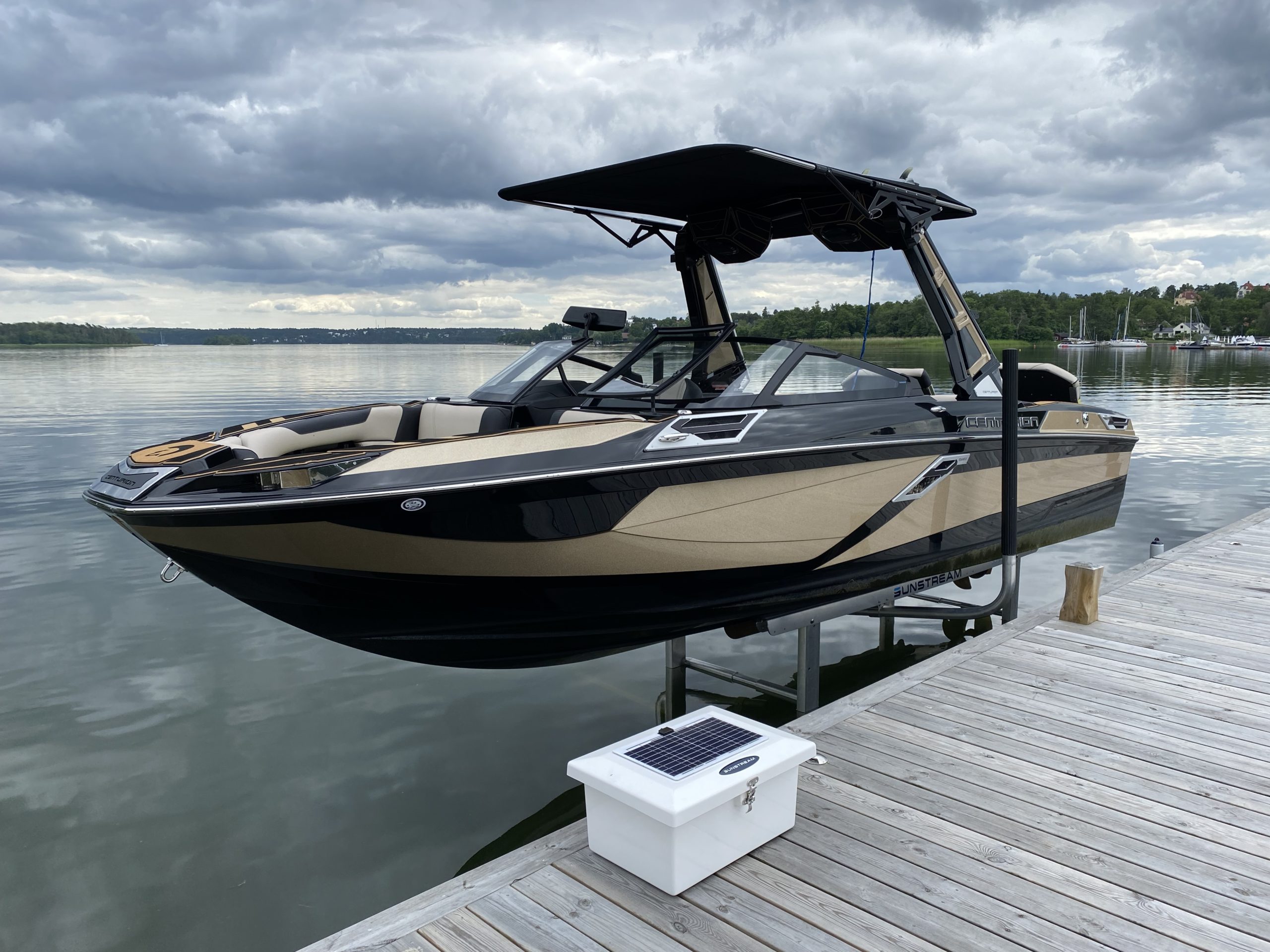

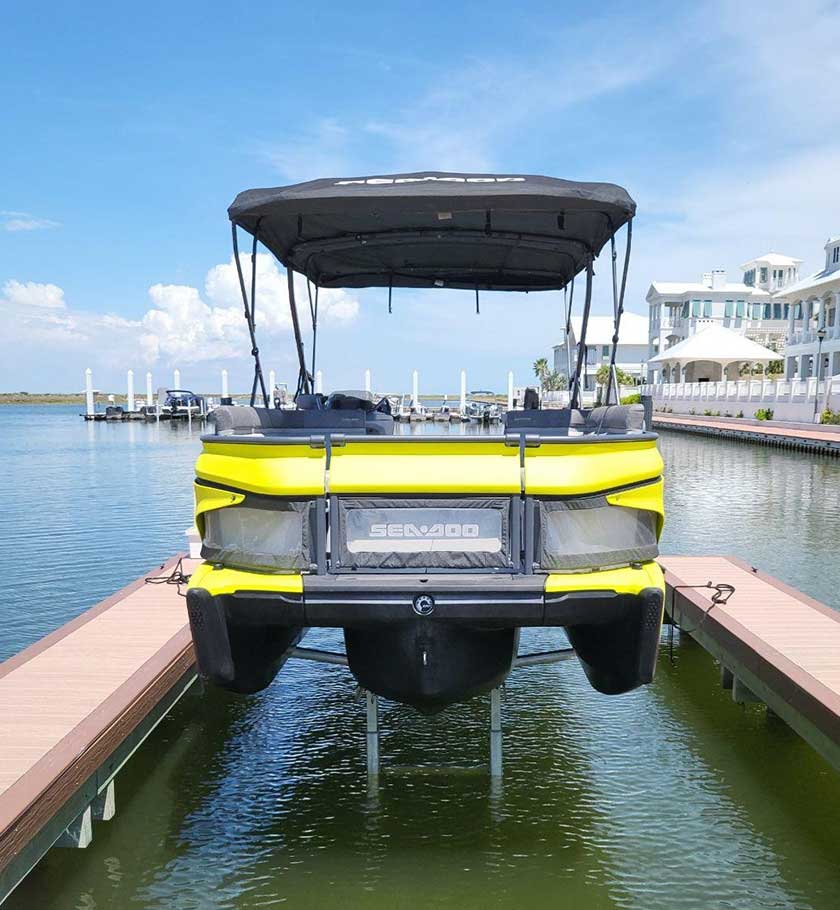

Lift Images

Sunlift X

Lift Sizes

Sunlift X

SLX5010B4

Capacity at Std Range – 5,000lb / 2268kg
Std Range – 4′ / 1.2m
Min Range Config – 3’* / 0.91m
Max Range w/ Adj. Range Kit – 6.5ft / 2m
Capacity at 5′ / 1.52m – 5000lb / 2268kg
Bunk Length – 10′ / 3m
Number of Cylinders – 2
Min. Depth Under Keel/Skeg – 7″ / 18cm

Patent Pending

SLX10014

Capacity at Std Range – 10,000lb / 4536kg
Std Range – 5′ / 1.52m
Min Range Config – 4′ / 1.22m
Max Range w/ Adj. Range Kit – 6.5′ / 2m
Capacity at 5′ / 1.52m – 10000lb / 4536kg
Bunk Length – 14′ / 4.2m
Number of Cylinders – 4
Min. Depth Under Keel/Skeg – 8″ / 23cm

Patent Pending

SLX20020

Capacity at Std Range – 20,000lb / 90720kg
Std Range – 5′ / 1.52m
Min Range Config – 4′ / 1.22m
Max Range w/ Adj. Range Kit – 6.5′ / 2m
Capacity at 5′ / 1.52m – 20000lb / 9072kg
Bunk Length – 20′ / 6m
Number of Cylinders – 4
Min. Depth Under Keel/Skeg – 10″ / 25cm

Patent Pending

SLX10014-PON

Capacity at Std Range – 10,000lb / 4536kg
Std Range – 5′ / 1.52m
Min Range Config – 4′ / 1.22m
Max Range w/ Adj. Range Kit – 6.5′ / 2m
Capacity at 5′ / 1.52m – 10000lb / 4536kg
Bunk Length – 16′ / 4.9m
Number of Cylinders – 4
Min. Depth Under Keel/Skeg – 16″ / 41cm

Patent Pending

Other Products

Accessories For Your Lift

Accessory

Swift Shield

$

Accessory

SPS

$
